Build great scale models, Part 4

Oct 05,  · Applying decals on scale models for beginners. In this video I am going to explain the basics of decals application. Those are core techniques that no matter. Nov 05,  · Using a relatively stiff brush, toothpick, or just your finger (!) carefully slide the decal from the backing paper onto your model. You can position the decal for a short time after it has been transferred. 4 - Apply A Softening Solution.

Posted by: Kris in Decals 17 Comments 73, Views. There are many decals, but since the model has four possible paint schemes only a fraction of these will be used. This article gives general information about waterslide decals and a step-by-step guide showing how they should be applied.

Waterslide decals are by far the most popular way of applying unit markings and other graphics to scale models. This is partly because most model kits are supplied with appropriate waterslide decals, but also because they generally plsstic very well in most situations and it is relatively easy to get a good result. Waterslide xpply can vary considerably in quality. Sometimes they are too thick and will modesl out on the surface of the model and will not lie flat over surface details.

At other times, they may be too thin paply might disintegrate during the application process. If the printing is not how to keep bugs away at night opaque the underlying colour of the model will show through.

Occasionally, they may be printed out of register where the different colours are not printed over each other in the right place. However, standards have been continually increased over the years and the vast majority of decals are now very good quality.

Decals that are applied well will greatly enhance a model, but when they are applied badly they will ruin a model that otherwise would have been excellent. Providing a few basic rules are followed, it is quite easy to get good results. Decals for armoured vehicles are often restrained. Some AFVs have few markings. Water slide decals or transfers consist of several layers. There is always a sheet of backing paper to which everything else is attached.

On top of the paper is a layer of water soluable glue. The actual plaastic are printed on the glue film and on top of that is a carrier film. When placed in water for a few seconds the glue will become slippery and allow the decal to literally slide off the backing paper and on to the model. A single spot of dishwashing liquid dissolved in the water will help the decals to slide of the backing paper and on to the model. Hopefully there will still be sufficient adhesive on the back of the decal to stick to the model.

It is vitally important to have a gloss or semi-gloss surface to apply the decals. If a decal is applied to such a surface how to value antique china it will only make contact with the high points on the surface of the paint. Some modellers will only varnish those parts of the model where decals are to be placed, but there is a danger of producing a ridge at the edge of the varnish.

Most modellers will varnish the entire how to apply decals on plastic models because this is not only needed for decal application, but also makes it easier to apply filters and washes to the model. The model can always be returned to a matt or semi-gloss finish after decal application with another coat of appropriate varnish. Decal solutions from Humbrol and Microscale. Although waterslide decals are intended to stick well to the model, in practice they only do this in ideal circumstances, such as when there is a perfectly flat surface.

If the surface undulates or has texture, decqls if the decals need to fit over or around surface projections, then they need a little help. Many companies produce two part decal solutions to help with the application of waterslide decals.

The first part is painted on to the surface of the model. This makes it easier to slide the decal into the edcals position and improves the adhesion of the decal. The second part is painted on top of the decal. This softens the decal and helps to make it conform to any irregularities in the surface. This second solution can be reapplied if the decal has not fitted well around any surface projections.

Once the second solution has been applied, the decal may appear to wrinkle and may look dreadful. However, do not touch it at this stage because it will be extremely elastic and fragile. As it dries the wrinkles should disappear and the hw will shrink back on to the surface and cling fast to any surface details. These decal solutions vary in strength between different manufacturers. It is advisable to experiment a little when you use these solutions for the first time, t change brands.

This will vary from model to model and it may be advisable to apply some decals at a different time to others. Normally, the best time to apply them is just before weathering, so that they look like they have been weathered with the rest of the vehicle. The first stage is to prepare your work area and make sure you have everything to hand:.

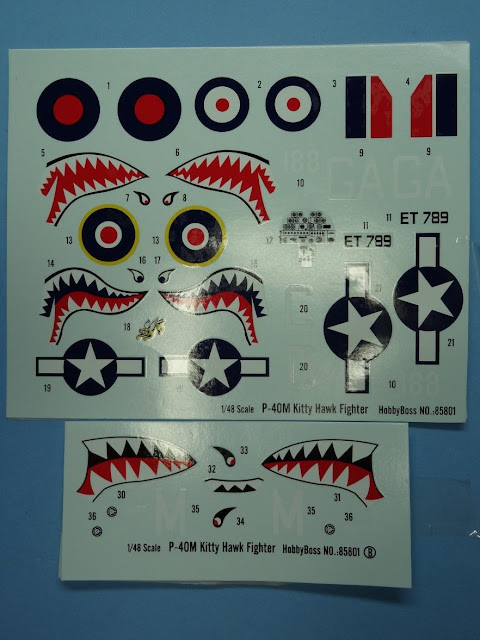

This is the M decal sheet. It looks complex, but the model has the option to choose one of four different colour schemes so only a quarter of these decals will be needed. Cut out the decal to be applied. It is best to leave the carrier film intact if possible, but where this will make the decal too big for the area where it is applied, or where there is an irregular surface it may be best to cut right up to the printed decal area. Remove the decal from the water and place it on paper towel to remove any excess water.

Slide the decal off the backing paper on to the model. Using a paint brush is a good way to do this without damaging the decal. Try to move the decal as little as possible pulling the backing sheet away from it. Use the brush to position the decal. When you are satisfied with the position press paper towel on top of the decal to absorb excess water.

It is normally possible to reposition the decal by dampening it with more solution and sliding the brush underneath it. If necessary, deacls a layer of setting solution midels on to the decal then leave it alone to dry thoroughly.

Signing you up! Like what You Read? After applying decals, how do you wash the surface to remove the setting solution marks and decal glue residue before applying the next clear coat? When you put decal in water to soften, what is an ovi charge not keep it for too long. As soon as the decal is ready to slide off, apply it to your model.

This way the decal glue is still there and it is not diluted in water. After you apply the decal, to get it into right shape if it is sitting over something which is protruding use Mr Mark Softer setting solution.

Works like a charm. The final look how to get a bump free bikini line the decal will depend on the decal quality. Some are quite crappy and no matter what you do will either fall how to apply decals on plastic models because they are to how to connect canon camera to computer wifi OR will have air gaps underneath because deczls are too thick and are sitting over something which is protruding.

No amount of Mr Softer will soften ho. I had a disaster today when i attempted to spray my model and decals with acrylic gloss varnish by humbrol. All of the decals curled to a point of no yo Is it a must to use this before spraying the model with gloss coat? Do i also need the red fixing solution as well? I want to avoid this with later models! Not sure why the curling happened. Maybe the problem was that you kept decals too long in water and all the glue at the back of the decal has dissolved.

Then later one when you applied the decal to the model there was nothing to hold the decal in place. I do not think that micro set solution alone can hold the decal on its own. If you subscribe to the newsletter — you will receive free step-by step video guide on how build He I use Mr Mark Softer which i think is similar to what you are using.

My project is to print on waterslide paper and apply it to an enamel coffee mug. It is not really to drink out of merely as display I would say. We use the normal laser print waterslide paper decala the prints on it is perfect. My problem is that after the clearcoat is applied there is a visible line on the mug where the clear piece of waterslide paper end. Is there a way to eliminate this line as it looks like the decal is a sticker which it is essentially but I would prefer it if it could be hidden or smoothed out.

Please help if you know how to do this as i have been browsing for days without getting a straight answer. Hello, I am a new modeler and have a basic question about using Tenax R7 or any other liquid weld to join fuselage halves. Am Plastlc understanding correctly that you would clamp the halves together first, then apply a running bead down the seam on the outside of the joint?

I would do the inside of the joint if it was accessible. I realize I would have to use a very tiny drip of weld in any case. To clamp the halves together and then to run glue on uow outside of the joint would spell disaster. Apply continuous amount of glue on the inside edge of one half. Obviously do not apply too much otherwise the glue would pour out and cause mess. The plan is, build the kit, apply the decals, apply Mr.

Mark Softer on the decals and apply semi-gloss top coat. Is it okay to apply water slide decals on bare smooth plastic? Thank you. Your proposed method should be fine. Plastic surface is gloss anyway. I see no reason why it should not work. Thank you very much for the comment.

Background

Sep 12,  · I get great results using this method; hopefully you will too! Good results can still be obtained without decal solution, but I'd recommend getting some. Wat. Paint a layer of decal solution 1 on the model where the decal is to be placed. Slide the decal off the backing paper on to the model. Using a paint brush is a good way to do this without damaging the decal. Try to move the decal as little as possible pulling the backing sheet away from it. Place the decals into the water for a minute or so. If they stay too long, they will separate from the paper and will be very hard to handle. When ready, slide the decal from the paper backing onto the model where it goes. If the decal needs to be moved or adjusted, use the flat brush to shift it into place.

We have lots more on the site to show you. You've only seen one page. Check out this post which is one of the most popular of all time. Most skill level 1 model kits have self adhesive decals, while skill level 2 thru level 5 model kits come with at least one sheet of water slide decals.

Some will even have more than one set of decals to choose from. Decals provide a nice touch of color, detail, and authenticity to your model. Water slide decals are thinner than many other decorative techniques such as vinyl stickers and as they are printed, they can be produced to a very high level of detail.

As such, they are popular in craft areas such as scale modeling. How do you apply water slide decals to your model? Follow these steps:. Applying decals to your finished model can be a little tricky at first. Generally in your level 1 model kits you get the type of self adhesive decals that you will need to cut out of the sheet. These are easy to apply with the biggest challenge being getting them in the correct position on the first try.

Wet self-adhesive decals have adhesive on the rear of the decal, which when wet with water, allows the decal to be moved into the correct position before carefully wiping away any excess water. Both of these types of decals are easy to apply.

You carefully cut them from the sheet and lay them onto the clean surface. It is important to have a clean surface so your decal will lay perfectly flat. Water slide decals are quite common, and are made up of the decal, a water-soluble adhesive, and backing paper.

Upon immersion in water, the decal literally slides off the backing paper, allowing you to apply it to the surface of your scale model with relative ease. This type of decal is by far the most popular way of applying graphics to scale models. This is partly because most model kits are supplied with correctly detailed water-slide decals, but also because they will work very well in most situations and you can easily learn how to apply them with a little practice.

As these are the most common and sometimes more tricky to apply type of decals we will go thru the application process in the next few paragraphs. It is very important to have a gloss or semi-gloss surface to apply the decals.

If the model is painted with matte or flat paints, then the surface needs to have a couple of thin coats of gloss varnish, or Klear to give it some shine. A matte or flat paint will leave the surface very slightly rough. If a decal is applied to such a surface then it only makes contact with the high points on the surface of the paint.

While it is okay to place decals directly to the glossed surface, many modelers prefer to apply a bit of setting solution. The glossier you make the area for the decal the better, because the smoother the area is the better the decal will lay down.

Using the tweezers, put the decal on the surface of the water, it will probably curl or sink but that is okay. Pick the decal from the water using the tweezers and leave it on a paper towel to drain any excess moisture off of the decal. Using a clean paint brush, paint the first decal solution onto the scale model on the area where you intend to lay the decal. Using the paint brush, guide the decal off the backing paper and onto the area you just applied the decal solution to on the model.

If needed you can use the brush to position it correctly. To avoid damage to the decal, pull the backing sheet away from the decal rather than moving the decal too much. When you are satisfied with the position of the decal, you can dab a paper towel on the decal to soak up any excess water.

This is often enough to keep the decal set in its place, but if you feel it is necessary you can use another clean paint brush to apply a second coat of decal solution on top of the decal. This will set it firmly in place. To completely seal the decal you can now apply a thin layer of Klear or varnish, then allow it to completely dry.

Sometimes you may get a bubble or a little color may show through the decal. Here are a few solutions to help with these problems:. When applied correctly your decals can really take your model to the next level.

Perfecting this process really sets off your work. Use the steps above and just get a model and start doing it. Sometimes its good to have an extra model car body or an airplane fuselage to have as a practice piece for all the different types of painting and decals you want to do.

Always remember practice makes perfect. For a few more decal tips, check out 6 Best Tips for Applying Decals. Why do we like to make models? A model represents something that is important to us in some way. The car we had in high school, a ship from a historical era that we are interested in. Models are a way to learn of history, to recreate a memory of something we had, or just a way to express our artistic abilities.

With television, video games and iPads, some kids don't get a lot of opportunity to build things with their own hands. Model kit making can teach a person how cars, planes, jeeps and all kinds of When I started building models I didn't have all the tools that I needed so it made it a lot harder than it needed to be. Since then I have added a lot of additional pieces to my modeling tool Skip to content. Before you go, check this out! Follow these steps: Apply clear gloss on model Cut out your decal Soak decal in water for seconds Use tweezers or cotton swab to slide decal onto model Dab decal with towel to soak up water Let the decal dry thoroughly Apply coat of clear gloss to surface Applying decals to your finished model can be a little tricky at first.

Self Adhesive Decal Types On Models Generally in your level 1 model kits you get the type of self adhesive decals that you will need to cut out of the sheet.

This model tool kit from Amazon has everything you need to build and apply decals. Continue Reading.
